MNCVSM
Continuously Measure Heart and Respiration Rate
in Real-Time Without Doctors or Contact to Skin
and View the Results on a Mobile Device
Mobile Non-Contact Vital Sign Monitoring, or MNCVSM, interfaces with a Doppler radar based vital sign monitoring system to calculate and display vital signs on a mobile device.
Early detection of life-threatening conditions is critical in determining life or death and could, oftentimes, be obtained through continuous health monitoring. However, health monitoring systems in use today often require active effort from the user, contact to skin, a medical professional for accurate measurements, or otherwise disrupt a typical person's daily routine. This may dissuade individuals from obtaining accurate, continuous measurements and, thus, limit their odds of early detection and survival. The use and development of a continuous and contact-less monitoring system like MNCVSM is vital for saving lives, both in and out of hospitals.
Hospitals, Assisted Living, and Everyday Applications
In hospitals, the MNCVSM system's contact-less feature will greatly benefit people with sensitive skin, like burn victims and infants in the neonatal ICUs. MNCVSM will allow people in assisted living homes or people with potentially life-threatening conditions, such as those who are at risk for heart attacks or who have sleep apnea, to live more freely knowing that their vital signs can always be monitored.

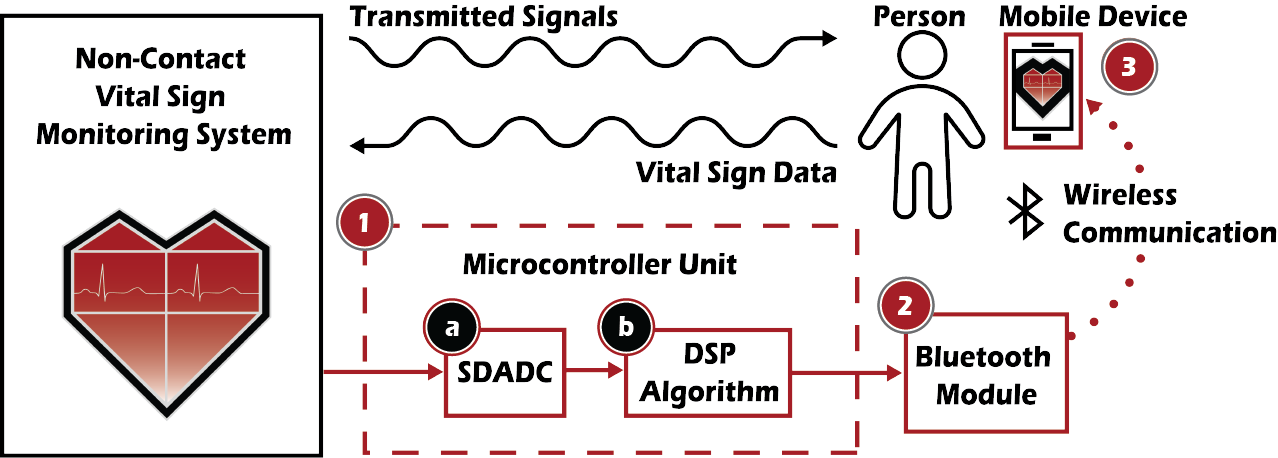

The Wildcats utilized the NCVSM system developed by Dr. Zhang and her Ph.D. students that uses Doppler radar technology to acquire vital sign data. This data was then processed on a microcontroller (MCU) with an on-board SDADC to determine the heart and respiration rates. Those values were then wirelessly transmitted to a mobile device via Bluetooth. Currently, only Android devices versions 5.0 or greater are supported by the MNCVSM system.

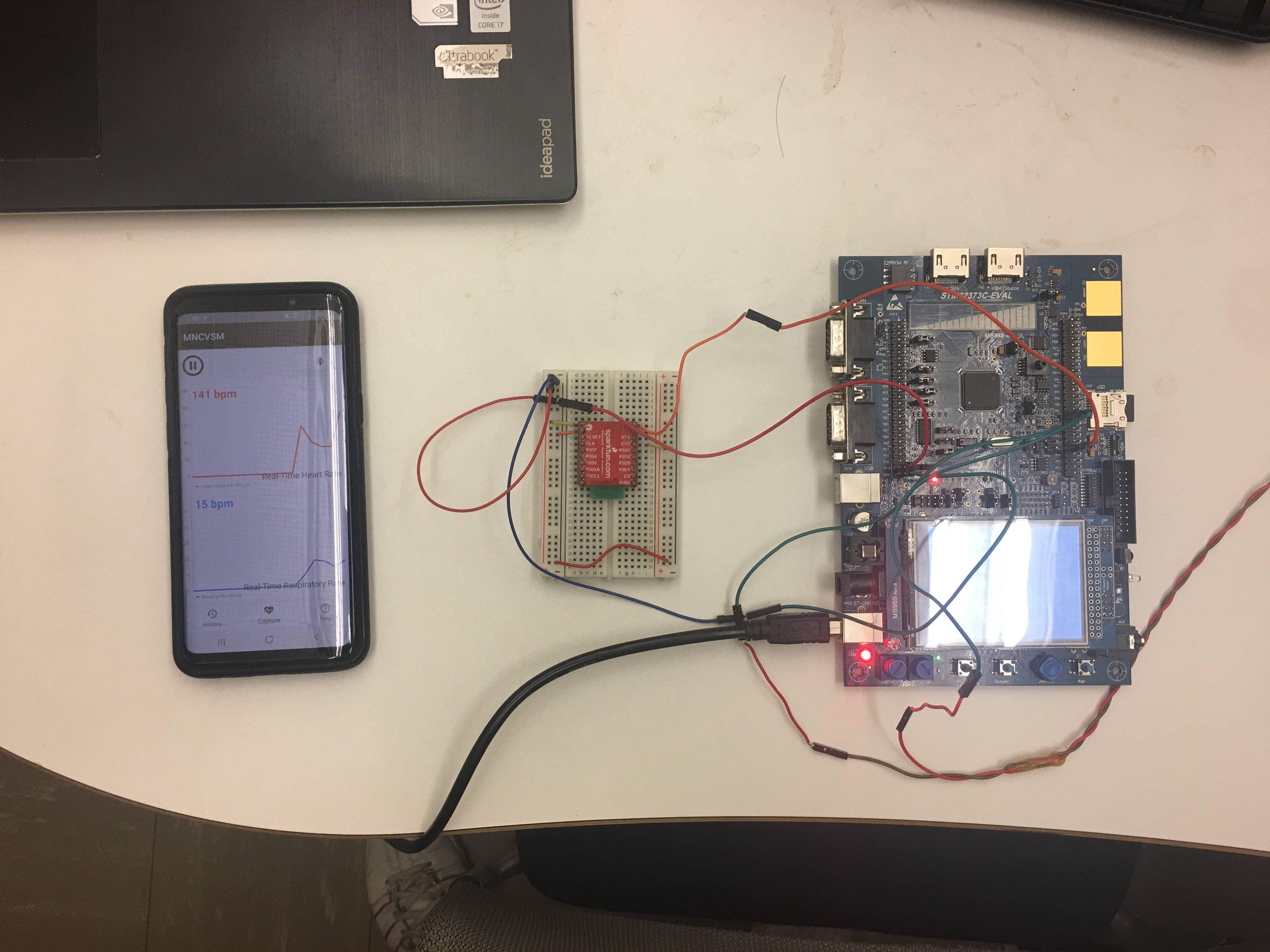

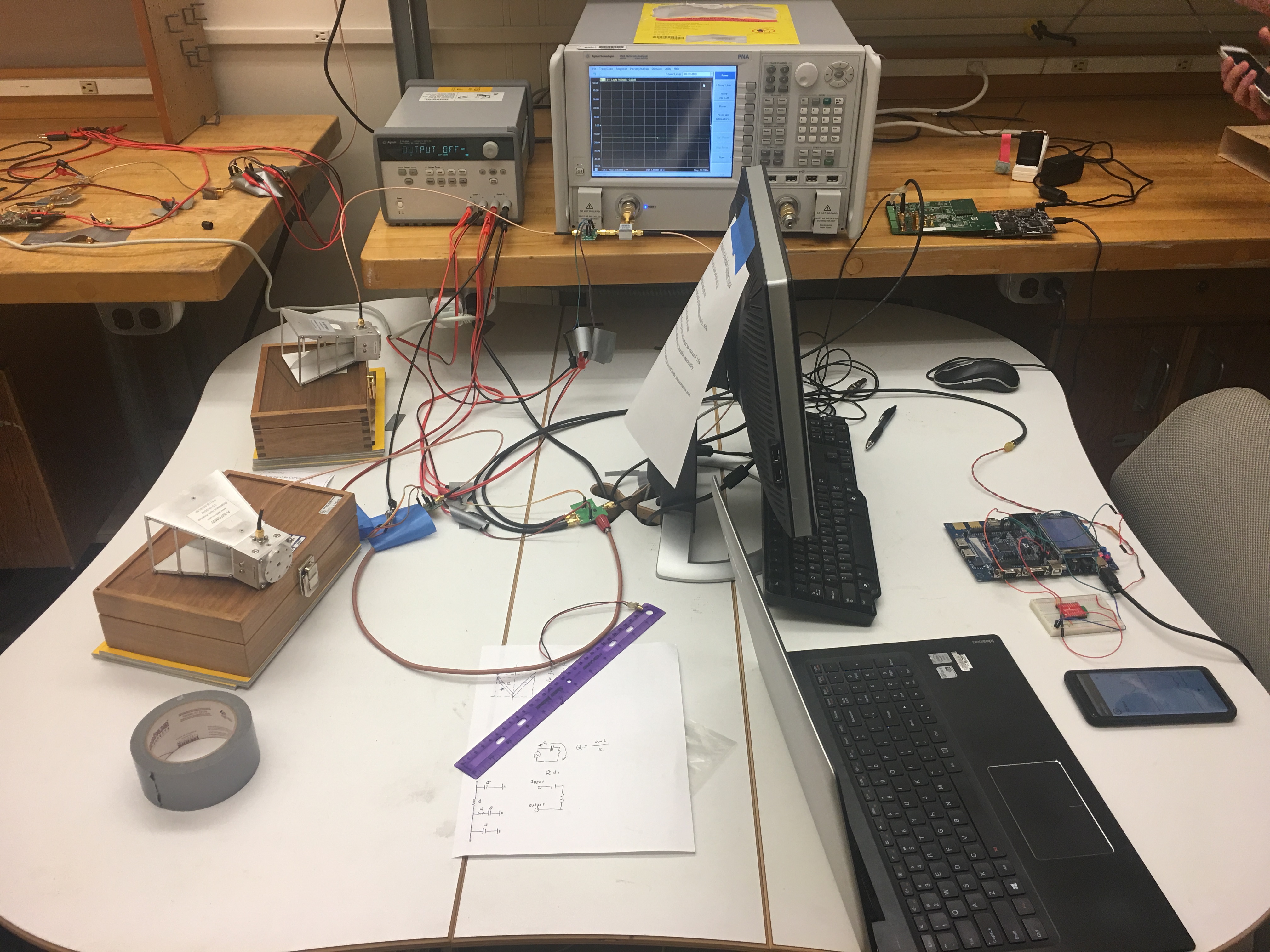

The Wildcats' MNCVSM system (right) connected to Dr. Zhang et. al.'s NCVSM system (left).
Detailed view of the MNCVSM mobile application displaying heart and respiration rate data (left) and the Bluetooth module (middle) connected to the MCU (right).
For more information, go to Documentation.
If the vital sign acquisition system is improved and compacted so that it can be portable, it can be used in search-and-rescue applications to detect signs of life. The signal processing algorithm could also be developed to handle clutter (extraneous data that is not vital signs) more effectively, allowing more freedom for the users, while still obtaining accurate vital sign measurements.
Other goals for future work in this project are to:
MNCVSM, pronounced "minickivism" or "M-N-C-V-S-M," was developed by the Wildcats from October 2018 to April 2019 under the advising of Dr. Ying Zhang and Ph.D. student Zongyang Xia for the Spring 2019 Capstone Design Expo held at McCamish Pavilion on April 23, 2019.
It builds upon the efforts of the Non-Contact Analysis of Health-Informatics via Observable Metrics (NAHOM) Team, an Electrical and Computer Engineering Senior Design team at the Georgia Institute of Technology during Spring 2018.
The Wildcats at the Capstone Design Expo Spring 2019.
Pictured from left to right: Chelsi Taylor, Ethan Vargas, Nydrel Jack,
Nathanael Williams, and Arianne Perez
All the members of the Wildcats are a part of the School of Electrical and Computer Engineering at the Georgia Institute of Technology and will be graduating in Spring 2019.
